Main Schematics
Several interpretations of the Trainwreck Express from blueguitar.org
1990 Trainwreck Express "Kelly" by David Hicks
Trainwreck Rocket by Mark Abbott
Several interpretations of the Trainwreck Express from blueguitar.org
1990 Trainwreck Express "Kelly" by David Hicks
Trainwreck Rocket by Mark Abbott
Last edited by Omar on Tue Apr 08, 2008 1:56 am, edited 5 times in total.
Tone by misadventure
Re: Schematics and Layouts
Variations of schematics
Kendrick Climax
The Derailment - 2 tube SE wreck by buckeyefootballfever
Possible mods for Express pre amp by Mark Abbott
Redraw of Express by John Kelly Brown
Notes for John Kelly Brown Express drawing
2Watt_BluesExpress_Version1 by timohp
Kendrick Climax
The Derailment - 2 tube SE wreck by buckeyefootballfever
Possible mods for Express pre amp by Mark Abbott
Redraw of Express by John Kelly Brown
Notes for John Kelly Brown Express drawing
2Watt_BluesExpress_Version1 by timohp
Last edited by Omar on Fri Jun 02, 2006 2:26 pm, edited 1 time in total.
Tone by misadventure
Re: Schematics and Layouts
Express Layout
Turret board design for Wreck2K4's chassis drawing

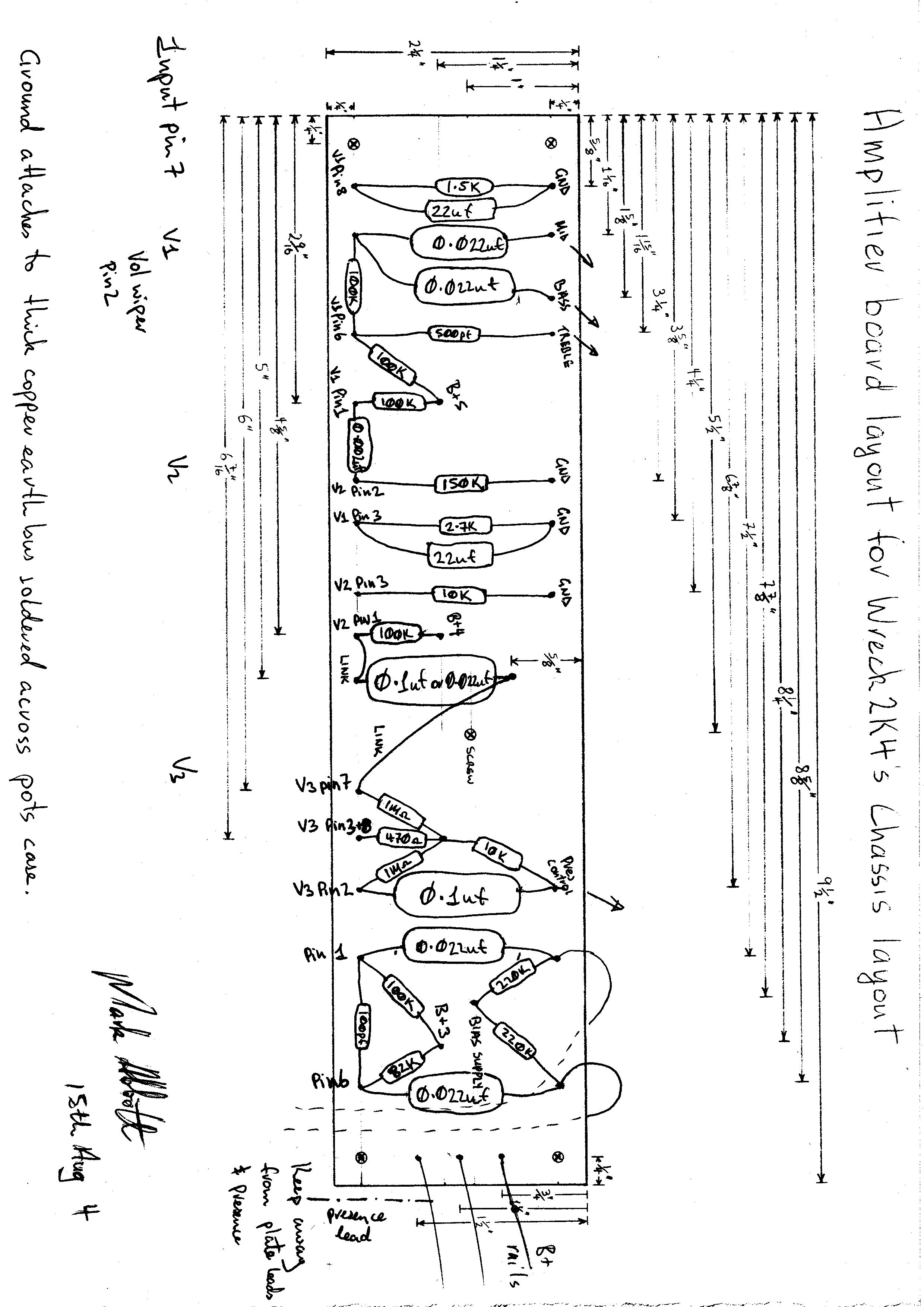

Component layout for Wreck2K4's chassis drawing
Express chassis notes
Turret board design for Wreck2K4's chassis drawing
Component layout for Wreck2K4's chassis drawing
Express chassis notes
Last edited by Omar on Fri Jun 02, 2006 2:28 pm, edited 2 times in total.
Tone by misadventure
Re: Schematics and Layouts
Liverpool Layout
3D view of Liverpool layout
Liverpool schematic by Mark Abbott
Liverpool preamp layout by Mark Abbott
3D view of Liverpool layout
Liverpool schematic by Mark Abbott
Liverpool preamp layout by Mark Abbott
Last edited by Omar on Tue Aug 28, 2007 1:36 am, edited 4 times in total.
Tone by misadventure
Re: Schematics and Layouts
Last edited by Omar on Fri Jun 02, 2006 2:29 pm, edited 1 time in total.
Tone by misadventure
Re: Schematics and Layouts
Miscellaneous Layouts and Chassis Diagrams
Instructions to build a Trainwreck head cabinet
Preamp layout for an Express or Liverpool
Express/Liverpool preamp wiring
Front panel layout for an Express of Liverpool
Rear panel layout for an Express of Liverpool
Instructions to build a Trainwreck head cabinet
Preamp layout for an Express or Liverpool
Express/Liverpool preamp wiring
Front panel layout for an Express of Liverpool
Rear panel layout for an Express of Liverpool
Tone by misadventure
Re: Schematics and Layouts
Is there a layout available for the 2Watt_BluesExpress_Version1 by timohp? Thanks
We went to different schools together.
-
- Posts: 12
- Joined: Sat Dec 02, 2006 11:50 pm
Layout
Hi all.
In case anyone has I would like very much the layout of the 2Watt_BluesExpress_Version1.
Thanks.
Regards.
Fernando Ferreira
In case anyone has I would like very much the layout of the 2Watt_BluesExpress_Version1.
Thanks.
Regards.
Fernando Ferreira
2 watt blues express layout/pics
Anyone built one of these or have pics of the insides?
Re: Schematics and Layouts
Hi,
I guess I have to post all the documentation I have. Here are a clip, updated schemo and an old layout drawing. Will try to take some gut shots tomorrow.
Have fun and keep on rocking!
Timo
I guess I have to post all the documentation I have. Here are a clip, updated schemo and an old layout drawing. Will try to take some gut shots tomorrow.
Have fun and keep on rocking!
Timo
-
- Posts: 2
- Joined: Wed Oct 03, 2007 3:07 am
- Location: Down South
Re: Schematics and Layouts
Newbie here... sorry.
I can't find the files ODwan mentioned.... were they posted? If so, can someone point me to them?
Thanks
I can't find the files ODwan mentioned.... were they posted? If so, can someone point me to them?
Thanks
Think! It ain't illegal yet! -- George Clinton
Re: Schematics and Layouts
Check this!geoff_in_nc wrote:Newbie here... sorry.
I can't find the files ODwan mentioned.... were they posted? If so, can someone point me to them?
Thanks
http://ampgarage.com/forum/viewtopic.php?t=3029
Timo
-
- Posts: 2
- Joined: Wed Oct 03, 2007 3:07 am
- Location: Down South
Re: Schematics and Layouts
Thank you for the help and pointer to the other thread, ODwan!!
Think! It ain't illegal yet! -- George Clinton
Re: Schematics and Layouts
Can anyone confirm if the TW schemo that's supposed to be an Alessandro schematic (the ones from Blueguitar org) is really so?
Otherwise, does anyone have one? I've been 'wrecking my head trying to fix my amp!
Thanks
Otherwise, does anyone have one? I've been 'wrecking my head trying to fix my amp!
Thanks
-
- Posts: 20
- Joined: Fri Jul 07, 2017 3:54 am
Re: Schematics and Layouts
Hey there.. What size bevel are you using for the cab dimensions?Omar wrote: ↑Tue Jan 18, 2005 6:38 am Miscellaneous Layouts and Chassis Diagrams
Instructions to build a Trainwreck head cabinet
Preamp layout for an Express or Liverpool
Express/Liverpool preamp wiring
Front panel layout for an Express of Liverpool
Rear panel layout for an Express of Liverpool
